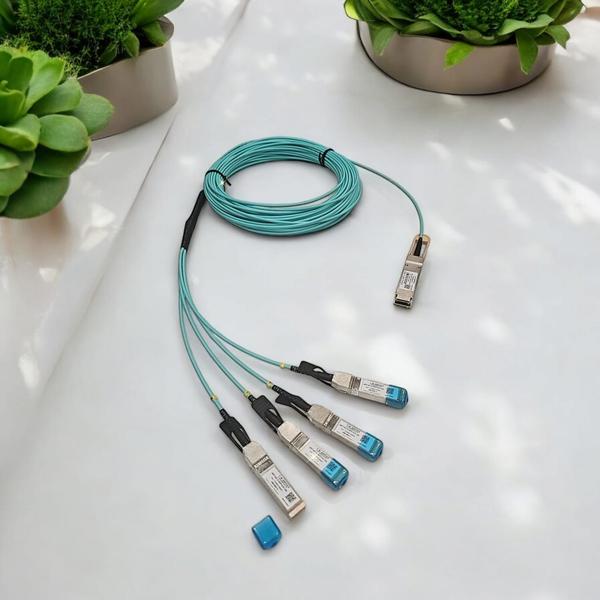

40G QSFP+ to 4x 10G SFP+ direct attach passive copper cable are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ and SFP+ equipment connections. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s.

Detailed introduction of Toshiba TOCP200 Fiber Optic Patch Cord: –Anti-electromagnetic interference and electromagnetic radiation –Good flexibility, anti-vibration, ensure that in any case zero bit error rate of transmission –High temperature and low temperature(-40 to 70) –Easy to install, needless of maintenance –Plastic optical fiber is not conductive, can share the power transmission pipeline –Long-range power supply –Accord with the Agilent universal.

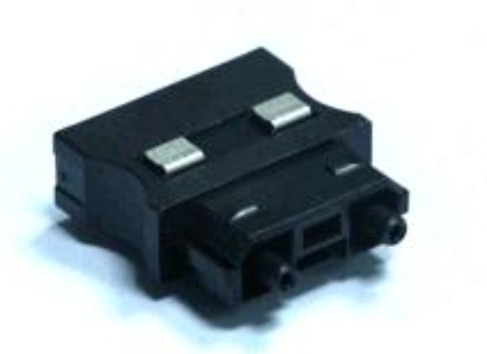

TOSLink PN F07 Duplex Connector For use with 1.0 x 2.2mm POF. One-Piece Design. Specifications Insertion Loss: Less Than 1.5 dB One-Piece Design Finish Method: Hot Plate or Polish Applications Audio/Video Factory Automation Office Equipment Short Data Links, Such as Within Equipment Manufacturer Telespace

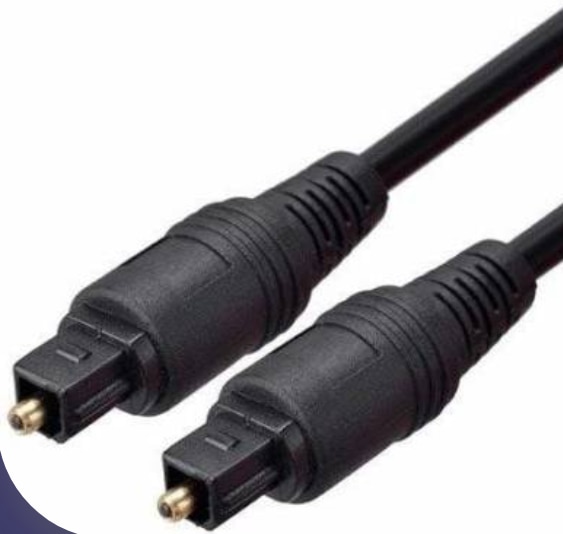

2x Toslink (SPDIF) Male connectors Gold-plated metal shell connectors with polished lens Ultra-thin PVC jacket Superior resistance to EMI/RFI and ground loop interference Ultra thin and light weight Ideal for installations where space is tight or limited High resolution digital cable with Toslink connectors offer the most acurate digital audio signal transfer for maximum audio clarity and resolution.

It can be used with Toshiba original equipment, with anti-pull, waterproof and pressure-proof design, low insertion loss, high-precision coupling and positioning imported Japanese optical fiber, which can ensure maximum data transmission and accurate polishing and grinding.

It can be used with Toshiba original equipment, with anti-pull, waterproof and pressure-proof design, low insertion loss, high-precision coupling and positioning imported Japanese optical fiber, which can ensure maximum data transmission and accurate polishing and grinding.

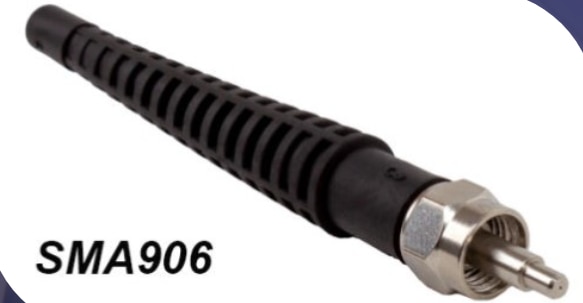

SMA 906 Connectors are available with 0.9, 2.0 or 3.0mm boots, and feature a precision stainless steel ferrule for superior performance. Features: Threaded coupling nut TIA/IEC compliant Stainless Steel Ferrule Available with 0.9, 2.0 or 3.0mm Boots Applications: Industrial Medical/Surgical Laser Systems Spectrometers

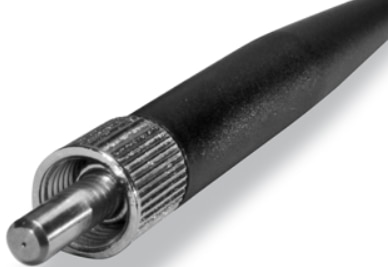

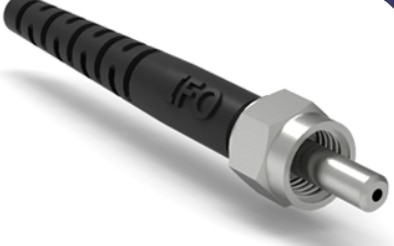

Stainless steel retention nut and one-piece ferrule and ferrule holder, standard-length strain relief, 1.0/2.2 mm POF cable, RoHS compliant. Standard SMA 905 connector for use with industry-standard 1.0 mm core plastic optical fiber with a 2.2 mm outside-diameter jacket. Connector ferrule body features retention ridges for use with push-on strain reliefs. Ferrule and nut are passivated per ASTM A967 for extra corrosion resistance. Includes connector, black strain relief and silicone dust cap. Application: Any indoor industrial or data communications networks including Sercos. Manufacturer: Telespace Networks

Telespace Networks manufactures multiple product lines of premium quality fiber optic patch cords suitable for Sercos networking and other industrial networking applications. The product lines below are made with OFS fiber cable 200/230 µm glass-core fiber and terminated with SMA 905 fiber optic connectors. SMA connections are OFS proprietary crimp and cleave, which eliminates the fiber core 'pistoning' problem common with this type of fiber and other connectors. For maximum retention strength, epoxy is used to bond the core/cladding to the stainless steel ferrule, and adhesive-lined heat shrink to bond jacketed Kevlar® strength members to the connector ferrule body.

HFBR-4531/4533 plastic optical fiber jumper Plastic optical fiber factory direct HFBR-4531Z / HFBR-4533Z Fiber Optic Connector RoHS compliant Compatible with Avago universal connector link family products and Fiber Optic Components 1 mm diameter plastic optical fiber (POF) in two levels: Low Cost Standard POF, there are 0.22 dB / m common attenuation; or high-performance ultra-low loss POF, there are 0.19 dB / m common decay.

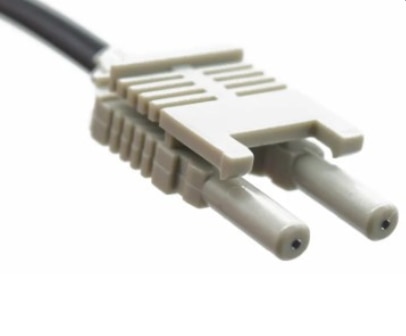

HFBR-4516Z Industrial POF Fiber Patch Cords Telespace Networks manufactures standard product lines of fiber optic patch cords with plastic optical fiber (POF) and Versatile Link (Versalink) terminations. These products provide ready-made solutions for quick installations in commercial or industrial networking/communications applications using Avago VersaLink fiber optic transmitters and receivers. Our premier quality patch cords are available in simplex and duplex cable with latching and non-latching connectors, heavy duty or UL-rated cable construction, and in many standard lengths.

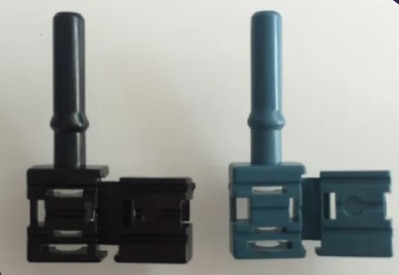

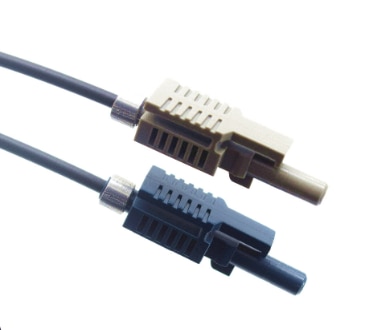

HFBR4503, HFBR4513 connectors provide excellent retention force combined with easy snap-in action. Plastic fiber cable delivers high bandwidth and a tight bend bend radius when compared to traditional glass fiber. These cables are available in lengths ranging from 0.3 meters to 50 meters. High retention force combined with easy snap-in pluggable connectors. Compatible with Agilent Versatile Link Family of Connectors and Fiber Optic Components. Latching connector insures lock down mating retention. Connectors are HFBR-4503 (gray) to HFBR-4513 (blue). 1 mm diameter Plastic Optical Fiber (POF) in two grades: low cost standard POF with 0.22 dB/m typical attenuation, or high performance extra low loss POF with 0.19 dB/m typical attenuation. 2.2mm polyethylene jacket on 1.0mm plastic optical fiber. Black color or white color cable for option. Quality Standard: ROHS,CE.
